HFJD manufactures cable tray covers for straight trays, bends, tees, crosses and reducers. Solid, ventilated, flanged and peaked cover designs with custom sizes and materials available.
cable tray lid
cable tray cover plate
perforated cable tray cover
ladder cable tray cover
galvanized cable tray cover
ventilated cable tray cover
HFJD Cable Tray Cover is designed to provide additional protection for cables installed in perforated cable trays, ladder cable trays and cable trunking systems.
Cable tray covers help shield installed cables from dust, falling objects, direct environmental exposure and other external influences while maintaining compatibility with the complete cable routing system.
HFJD manufactures covers for straight cable tray sections as well as matching covers for bends, tees, crosses and reducers.
Available designs include Solid Flanged, Peaked Flanged, Solid Flanged-Arc and Ventilated Flanged covers, allowing the cover type to be selected according to cable protection, ventilation and project requirements.
Cable tray covers provide an additional protective layer above installed cables and can help reduce exposure to dust, debris and accidental contact.
HFJD can supply covers not only for straight sections, but also for horizontal bends, vertical bends, tees, crosses and reducers.
Different cover profiles are available according to installation conditions, including solid, ventilated, flanged and peaked designs.
Cover dimensions can be manufactured to match different cable tray widths, section lengths and fitting configurations.
Cable tray covers can be manufactured in galvanized steel, hot dip galvanized steel, stainless steel, aluminum and powder-coated steel according to project requirements.
Covers can be manufactured together with the corresponding tray system to simplify dimensional matching and project procurement.
| Product Name | Cable Tray Cover |
| Product Type | Cable Tray Cover Plate / Cable Tray Lid |
| Cover Designs | Solid Flanged / Peaked Flanged / Solid Flanged-Arc / Ventilated Flanged |
| Material | Galvanized Steel / Carbon Steel / Stainless Steel / Aluminum |
| Surface Treatment | Pre-Galvanized / Hot Dip Galvanized / Powder Coated / Natural Stainless Steel / Aluminum |
| Width | According to Cable Tray Width / Customized |
| Length | 2.4 m / 3.0 m / Customized |
| Thickness | According to Project Requirement |
| Ventilation | Solid or Ventilated |
| Fitting Covers | Bends / Tees / Crosses / Reducers |
| Cover Clamps | Available Separately |
| OEM / ODM | Available |
The solid flanged cover provides continuous overhead protection and is suitable where maximum enclosure of the cable route is required and cable heat accumulation is not a major concern.
The flanged edges help improve positioning and compatibility with the cable tray structure.

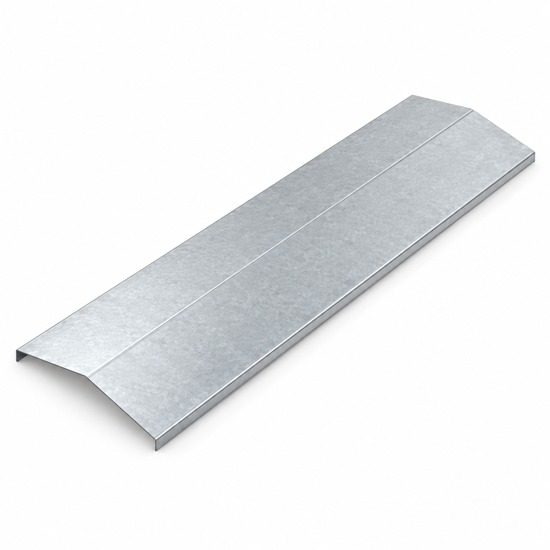

The peaked flanged cover features a raised center profile designed to help shed falling debris and moisture away from the center of the cable tray.
It can be considered for outdoor or exposed installations depending on project requirements.
The solid flanged-arc design provides a smooth curved profile while maintaining a covered cable route.
This type can be manufactured according to project-specific cable tray dimensions and appearance requirements.
Ventilated covers provide overhead cable protection while allowing heat to escape through ventilation openings.
They are suitable where cable protection and airflow are both important considerations.
| Feature | Solid Cover | Ventilated Cover |
|---|---|---|
| Cable Protection | Higher enclosure | Protective overhead shield |
| Ventilation | Limited | Improved airflow |
| Heat Dissipation | Lower | Better |
| Typical Application | Dust and external protection | Protection where ventilation is also required |
| Selection | Based on project environment | Based on cable heat and ventilation requirements |
HFJD manufactures straight cable tray covers to match different tray widths and lengths.
Typical applications include:
For perforated tray systems, see:
Perforated Cable Tray Systems

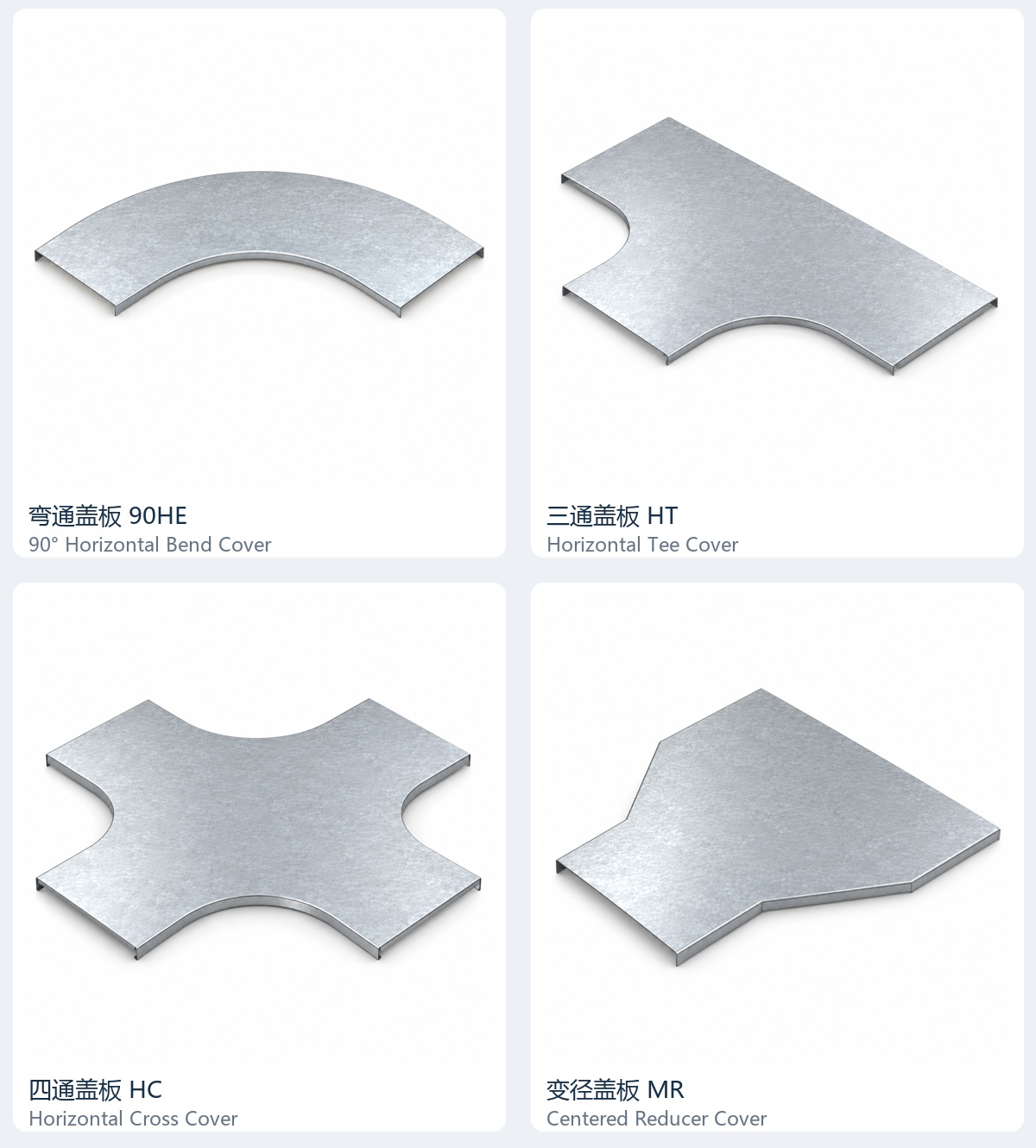

Cable routing systems often require directional fittings, so HFJD can manufacture matching cover plates for horizontal and vertical bends.
Available configurations can include:
Matching cover plates can also be manufactured for branching cable tray sections.
Available configurations include:
The cover geometry is manufactured to match the fitting dimensions and cable tray system.
Cable tray reducers are used where cable tray width changes along the routing system.
HFJD can manufacture matching:
These covers help maintain continuity of the protected cable route across width transitions.
Pre-galvanized steel covers provide an economical solution for indoor commercial and industrial cable management systems.
They can be supplied together with:
Pre-Galvanized Perforated Cable Tray
.
Hot dip galvanized covers can be supplied for outdoor and industrial environments where enhanced corrosion protection is required.
View:
Hot Dip Galvanized Perforated Cable Tray
SS304 and SS316 cover options can be supplied for corrosive, chemical, food processing, marine and other specialized environments.
They can also be manufactured to match:
Stainless Steel Ladder Cable Tray
Aluminum covers provide lower system weight and good corrosion resistance and can be manufactured to match aluminum cable tray and ladder systems.
View:
Aluminum Ladder Cable Tray
Cable tray covers can be secured using suitable cover clamps or project-specified fastening systems.
Cover clamps are supplied as separate accessories and can be selected according to the tray profile, cover design and installation environment.
HFJD can provide matching:
The need for a cable tray cover depends on the installation environment, cable type and project specification.
A cover may be considered when:
Where heat dissipation is important, a ventilated cover may be more suitable than a fully solid cover.
HFJD can manufacture cable tray covers according to customer drawings and cable tray dimensions.
Customization options include:
Customers can send cable tray drawings, fitting drawings, dimensions or technical specifications for review.
Material Preparation → Cutting → Forming → Flange Processing → Ventilation Processing (If Required) → Dimension Inspection → Surface Treatment → Final Inspection → Packing
Inspection can include:
Cable tray covers are relatively wide sheet-metal components and require suitable packing to reduce deformation and surface damage during transportation.
HFJD can provide:
Packing arrangements can be optimized according to cover width, length, quantity and container loading requirements.
A cable tray cover is a removable protective plate installed above a cable tray or cable ladder to provide additional protection for installed cables.
HFJD can provide solid flanged, peaked flanged, solid flanged-arc and ventilated flanged cover designs.
Yes. HFJD can manufacture covers for straight sections, horizontal bends, vertical bends, tees, crosses and reducers.
Solid covers provide greater enclosure, while ventilated covers provide overhead protection while allowing more heat to escape from the cable route.
Cover clamps are normally supplied as separate accessories and can be selected according to the cover and tray design.
Yes. Width, length, thickness, flange profile, ventilation holes and fitting shapes can be customized according to drawings.
Yes. SS304 and SS316 stainless steel cover options are available according to project requirements.
Yes. Hot dip galvanized steel covers can be supplied for compatible HDG cable tray systems.
Yes. Cover thickness can be specified independently from the cable tray body according to project requirements.
Yes. HFJD can supply straight cable trays, covers, bends, tees, crosses, reducers, couplers and support components as a complete cable management system.
Looking for a reliable Cable Tray Cover Manufacturer?
Send HFJD:
Cable Tray Width + Cover Length + Material + Cover Thickness + Cover Type + Surface Finish + Quantity + Matching Fittings + Destination Port
For custom bend, tee, cross or reducer covers, please send the corresponding fitting drawings or dimensions.
HFJD can provide complete cable tray, cover, fitting and support solutions for international projects.
Contact us today to discuss your cable tray requirements. Our team is ready to provide timely support and competitive solutions.
