HFJD manufactures aluminum ladder cable trays for industrial, power and infrastructure projects. Lightweight, corrosion-resistant construction with custom sizes, covers and fittings.
aluminum cable ladder
aluminium ladder cable tray
aluminum cable tray manufacturer
lightweight cable ladder
industrial aluminum cable ladder

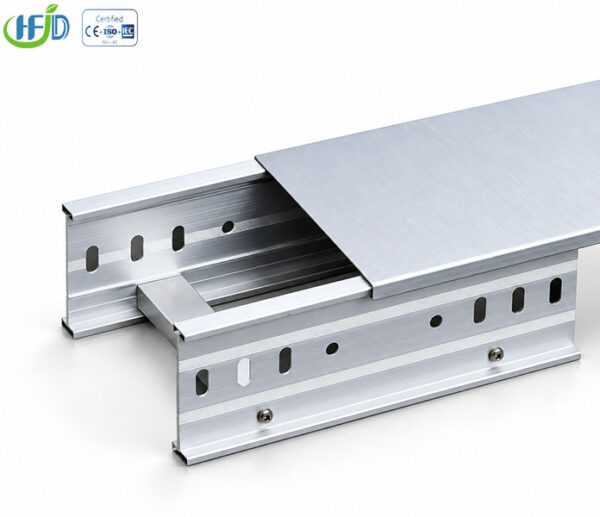

HFJD Aluminum Ladder Cable Tray is a lightweight and corrosion-resistant cable support system designed for routing power cables, control cables, communication cables and instrumentation cables in industrial, commercial and infrastructure projects.
The open ladder structure consists of two longitudinal side rails connected by regularly spaced rungs, providing excellent cable ventilation, easy cable access and efficient installation.
Compared with conventional steel cable ladders, aluminum offers significantly lower material weight while providing good corrosion resistance, making it suitable for projects where installation weight, transportation efficiency and environmental exposure are important considerations.
The product is part of the HFJD
Ladder Cable Tray
range and can be manufactured in customized widths, heights, lengths, rung spacing and structural configurations.
The low density of aluminum helps reduce the overall weight of the cable support system, making transportation, handling and installation easier compared with many equivalent steel structures.
Aluminum naturally develops a protective oxide layer and is widely selected for cable support applications where resistance to moisture and environmental corrosion is important.
The open ladder structure allows air to circulate around installed cables, helping dissipate heat in power and electrical cable installations.
The open structure allows cables to be laid directly onto the ladder rungs and provides convenient access during cable inspection, maintenance and future system expansion.
HFJD can manufacture aluminum cable ladders according to project dimensions, cable capacity and installation requirements.
Straight sections can be supplied together with horizontal bends, vertical bends, tees, crosses, reducers, covers, couplers and support components.
| Product Name | Aluminum Ladder Cable Tray |
| Product Type | Ladder Cable Tray / Cable Ladder |
| Material | Aluminum Alloy |
| Material Grade | According to Project Specification |
| Common Width | 100–900 mm / Customized |
| Common Side Height | 50 / 75 / 100 / 150 mm / Customized |
| Common Length | 2.4 m / 3.0 m / Customized |
| Material Thickness | Customized According to Load Requirement |
| Rung Spacing | Standard / Customized |
| Surface | Natural Aluminum / Customized |
| Cover | Optional |
| Fittings | Bends / Tees / Crosses / Reducers / Couplers |
| OEM / ODM | Available |
HFJD can manufacture aluminum cable ladders in different dimensions according to cable quantity, load requirements and project drawings.
Common width options include:
Side rail height, ladder length, aluminum thickness and rung spacing can be customized according to project requirements.
A typical aluminum ladder cable tray consists of:
The ladder structure provides continuous mechanical support while maintaining an open area around the cables for ventilation and inspection.
Material selection has a direct impact on cable tray weight, corrosion performance, transportation, installation and long-term project requirements.
| Feature | Aluminum Cable Ladder | Galvanized Steel Cable Ladder |
|---|---|---|
| System Weight | Lower | Higher |
| Corrosion Resistance | Natural corrosion resistance | Depends on zinc coating and environment |
| Handling | Easier due to lower weight | Heavier during handling |
| Outdoor Use | Suitable subject to project environment | HDG commonly used |
| Installation | Lightweight and convenient | Strong and widely used |
| Material Selection | Project-specific aluminum alloy | Carbon steel / galvanized steel |
For projects requiring a steel cable ladder with post-fabrication galvanizing, see our
Hot-Dip Galvanized Cable Ladder
Aluminum and hot dip galvanized steel are both widely used cable ladder materials, but the most suitable option depends on installation conditions.
HFJD can provide both aluminum ladder systems and
Heavy Duty Galvanized Ladder Cable Tray
according to project requirements.
HFJD Aluminum Ladder Cable Tray can be used in:
The open ladder structure is particularly suitable for routing larger power and control cables where continuous ventilation and accessible cable installation are required.
Cable cleats, cable ties or project-specified fixing components can be used to secure cables to the ladder rungs.
HFJD can manufacture complete aluminum ladder cable tray systems including:
Fittings can be manufactured to match the ladder width, side rail height and project routing requirements.
Aluminum cable ladders can be installed using different support arrangements depending on cable load, ladder width and structural conditions.
Cantilever brackets or engineered wall brackets can be used for horizontal ladder installations.
Trapeze structures, threaded rods and
Strut Channel / C Channel Support Systems
can be used for suspended installations.
Cable ladders can also be mounted to structural steel using suitable brackets, clamps and fastening systems according to the project design.
The required aluminum thickness, side rail profile, rung design and support spacing should be selected according to the actual cable load and engineering requirements.
Important design information includes:
For projects with particularly demanding load requirements, customers can also review the HFJD
Heavy-Duty Cable Ladder
range.
HFJD supports project-based manufacturing according to drawings, technical specifications and cable routing requirements.
Available customization includes:
Customers can provide CAD drawings, PDF drawings, technical specifications or samples for engineering review.
Aluminum Material Preparation → Cutting → Forming → Rung Processing → Assembly → Connection Processing → Dimension Inspection → Surface Inspection → Final Inspection → Packing
Inspection can include:
Aluminum cable ladders can be packed according to dimensions, product structure, quantity and transportation requirements.
Available packing methods include:
HFJD can optimize container loading arrangements according to the final product dimensions and order quantity.
HFJD provides cable tray systems, cable ladders, strut channels and related support products for international industrial and infrastructure projects.
Our existing Ladder Cable Tray range already includes galvanized, hot-dip galvanized and heavy-duty configurations, allowing aluminum ladder systems to be supplied as part of a broader project-specific cable management solution.
View the complete
HFJD Ladder Cable Tray range
It is an open cable support system manufactured from aluminum alloy, consisting of longitudinal side rails connected by horizontal rungs.
Major advantages include lower material weight, good corrosion resistance, open cable ventilation and convenient installation and maintenance.
Common widths can range from approximately 100 mm to 900 mm, while customized dimensions can be manufactured according to project requirements.
Yes. Side height can be manufactured according to cable quantity, project design and required structural performance.
Yes. 3-meter sections can be manufactured together with 2.4-meter and other customized lengths.
Yes. Matching covers can be supplied according to the ladder dimensions and installation requirements.
Yes. Matching horizontal bends, vertical bends, tees, crosses, reducers and connection components can be manufactured for a complete ladder system.
Aluminum is commonly used in outdoor applications because of its corrosion-resistant characteristics. Final material selection should always consider the specific environmental exposure and project specification.
Yes. HFJD supports customized manufacturing based on CAD drawings, PDF drawings, specifications and approved samples.
