A marine cable tray must carry cables in an environment where salt, moisture, condensation, vibration, washdown, temperature changes, and restricted maintenance access can accelerate deterioration. The right system is chosen from the actual exposure and load, not from a broad “marine grade” description. This guide helps designers and buyers compare materials, finishes, supports, fasteners, drainage, cable restraint, and inspection requirements.
Marine cable tray selection: the quick answer
Stainless steel is often evaluated for aggressive salt and washdown exposure, but the grade, surface condition, fabrication, and fasteners still matter. Hot-dip galvanized steel may suit less severe zones when the coating and maintenance plan match the environment. Aluminum reduces weight and can resist corrosion in compatible conditions. FRP may suit selected chemical or electrically isolating applications. Every marine cable tray requires project-specific structural, fire, cable, grounding, and corrosion review.
Location changes the decision. A marine cable tray inside a controlled machinery space does not face the same exposure as a tray on an open pier, splash zone, seawater-treatment area, or offshore deck. Define the zone before comparing products.
Define the marine exposure zone
Start the marine cable tray specification with a route-by-route exposure schedule. Record salt spray, direct seawater, condensation, chemical vapor, washdown, fuel or oil contact, ultraviolet light, temperature, vibration, and expected cleaning. Identify whether the route is indoors, sheltered outdoors, on deck, beneath a pier, or near a process discharge.
- Distance from seawater and frequency of direct wetting
- Salt deposition and whether rain can wash surfaces
- Standing water, condensation, drainage, and ventilation
- Cleaning chemicals and washdown pressure
- Temperature range, sunlight, vibration, and movement
- Contact with dissimilar metals and conductive structures
- Access for inspection, cleaning, and cable replacement
- Required design life and planned maintenance interval
This information prevents one marine cable tray material from being applied across zones with very different risks. It also supports a realistic inspection plan rather than relying on corrosion resistance alone.
Compare marine cable tray materials
| Material | Ventaja potencial | Critical checks |
|---|---|---|
| Acero inoxidable | Resistance in many salt and washdown environments | Grade, chloride level, finish, weld treatment, fasteners |
| Acero galvanizado en caliente | Strong steel construction with zinc protection | Exposure severity, coating, cut repair, drainage, maintenance |
| Aluminio | Low weight and corrosion resistance in suitable zones | Galvanic isolation, load, alloy, fasteners, chemical exposure |
| FRP | Low weight and resistance to selected chemicals | Resin, UV, fire performance, span, temperature, grounding needs |
| Acero revestido | Identificación adicional de barreras y colores | Surface preparation, edge protection, UV, repair procedure |
A marine cable tray should be selected as a complete system. Tray sections, fittings, covers, splice plates, brackets, bolts, washers, anchors, and cable clamps need compatible materials. A stainless tray assembled with unsuitable fasteners can still develop local corrosion and maintenance problems.
El Descripción general de IEC 61537:2023 describes requirements and tests for cable tray and ladder systems and includes corrosion classification. For coated carbon-steel structures, the ISO 12944-2 environment classification is a useful reference. Apply only standards and editions required by the project.
Prevent corrosion traps and galvanic contact
Good marine cable tray design lets water drain and surfaces dry. Avoid pockets at splices, covered horizontal ledges, blocked perforations, and details that retain wet insulation or debris. Covers can protect cables from spray and falling objects, but they may also reduce drying and increase wind load.
Dissimilar metals in electrical contact can create galvanic corrosion when an electrolyte is present. A marine cable tray may need engineered isolation from carbon-steel frames, aluminum structures, copper-bearing components, or incompatible fasteners. Isolation details must not defeat electrical bonding or grounding requirements.
Field cuts and welds require controlled finishing. Remove burrs, restore the specified protective system, and treat stainless weld areas as required by the fabrication specification. Do not assume a spray coating provides the same performance as the original marine cable tray material.

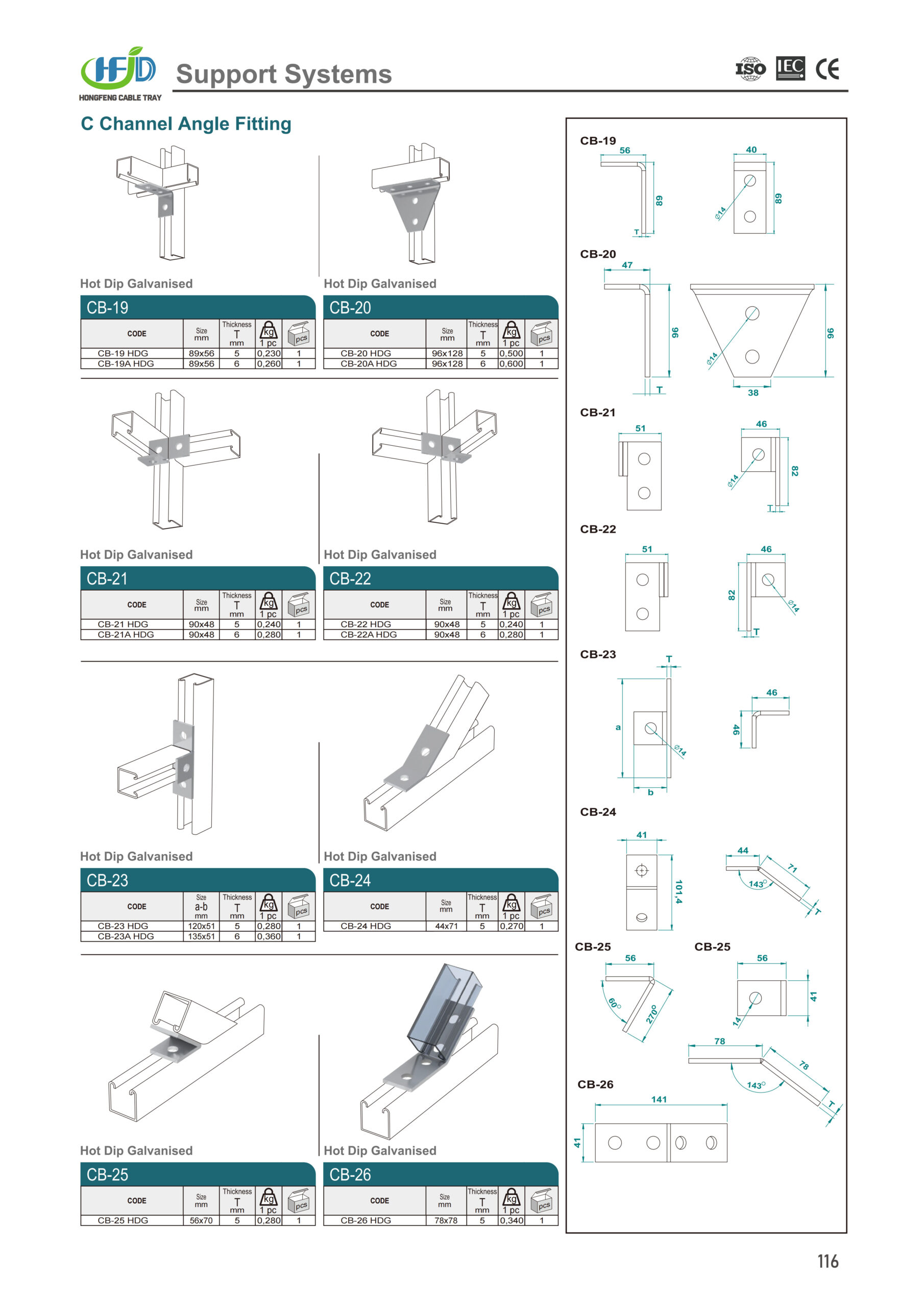

Check structural loads and support spacing
The marine cable tray load includes installed cables, future allowance, fittings, covers, dividers, and accessories. Depending on location, the design may also include vessel motion, vibration, wind, wave-related effects, seismic forces, maintenance loads, and short-circuit forces. The responsible engineer must define the applicable combinations.
Compare capacities at the required span and orientation. Check rail deflection, splice position, cantilevered ends, vertical routes, fittings, and supports near equipment. For an open, corrosion-focused option, review the corrosion-resistant cable ladder page, then verify project loads and exposure.
Protect and restrain the cables
A marine cable tray does not make an unsuitable cable acceptable for the location. Verify jacket material, sunlight and wet-location suitability, oil and chemical resistance, fire performance, bend radius, ampacity, segregation, and termination requirements. Cables on vertical or highly vibrating routes need appropriate restraints.
Choose cleats and clamps for cable diameter, arrangement, mechanical demand, tray geometry, and environment. Avoid sharp edges and mixed-metal details that damage jackets or corrode. Route cables so inspection remains possible and seawater does not collect around terminations.
Coordinate installation and access
Install the marine cable tray only after support locations, penetrations, equipment interfaces, and pulling access are coordinated. Keep the route clear of hot surfaces, moving equipment, drains that discharge continuously, and areas where workers may step on the tray. Provide space to remove covers and replace cables.
Use specified fasteners and tightening procedures. Protect finished surfaces during lifting and cable pulling. For chemical exposure or reduced weight, the covered FRP cable tray may be evaluated as an alternative. Confirm resin, UV, fire, load, and support requirements.
Marine cable tray inspection checklist
- Look for pitting, rust, coating damage, staining, and salt deposits.
- Clear drains, perforations, debris, and standing water.
- Inspect splices, brackets, anchors, bolts, and cover clamps.
- Check dissimilar-metal interfaces and isolation materials.
- Verify cable cleats remain secure without jacket damage.
- Confirm bonding connections remain intact where required.
- Check vibration damage, fatigue cracks, and movement at equipment.
- Record deterioration so trends can be addressed early.
The marine cable tray inspection interval should reflect exposure and operating history. Inspect after severe storms, flooding, chemical releases, equipment changes, or cable modifications. Clean salt deposits using methods compatible with the tray and cable materials.
Common specification mistakes
Frequent mistakes include using “marine grade” without naming a material, ignoring fastener compatibility, trapping seawater beneath covers, comparing load ratings at different spans, and placing supports where they cannot be inspected. Another error is assuming every stainless grade or FRP resin gives the same marine cable tray performance.
Preguntas frecuentes
Is stainless steel always required near seawater?
No. Selection depends on the exposure zone, chloride level, loads, fabrication, maintenance, required life, and project standards. Stainless grade must also be specified.
Can galvanized cable tray be used in a marine environment?
It may suit selected zones when the galvanizing specification, drainage, hardware, cut repair, inspection, and expected service conditions are acceptable.
Is FRP immune to all chemicals?
No. Chemical resistance depends on the resin system, concentration, temperature, exposure duration, fabrication, and manufacturer data.
Should an exterior marine route have covers?
Use covers when spray, sunlight, falling objects, or debris justify them. Also account for drainage, drying, wind load, fastening, heat, and access.
What should be included in an inquiry?
Send route drawings, exposure zones, cable schedule and weight, support span, material, finish, covers, fittings, quantities, loading criteria, and required documentation.
Prepare a marine cable tray specification
A dependable marine cable tray system starts with defined exposure, compatible materials, controlled drainage, verified loads, suitable cable restraint, and accessible inspection points. PowerCableTray can review route and cable information to identify suitable ladder, tray, fittings, covers, and supports. Include the site environment with your inquiry so the recommendation addresses real operating conditions.
