HFJD provides professional Strut Channel Roll Forming Machines for the continuous production of C channel steel, strut channels, slotted channels, and cable support profiles.
The roll forming machine uses a continuous forming process to transform galvanized steel coils into accurately shaped C-channel profiles. Different punching, forming, cutting, and profile configurations can be integrated according to the required product design.
HFJD supplies roll forming equipment suitable for manufacturing 41×41 mm, 41×21 mm, P1000, P1000T and customized strut channel profiles for electrical, mechanical, solar mounting, cable management, and construction applications.
| Item | Specification |
|---|---|
| Machine Type | Strut Channel Roll Forming Machine |
| Application | C Channel / Strut Channel Production |
| Production Material | GI / Galvanized Steel Coil |
| Material Thickness | Customized |
| Profile Width | Customized |
| Profile Height | Customized |
| Punching | Optional / Integrated |
| Cutting | Automatic |
| Forming Method | Continuous Roll Forming |
| Control System | PLC Control |
| Tooling | Customized Rollers |
| Production Speed | According to Product Design |
| Machine Configuration | Customized |
Machine specifications can be customized according to the required C channel profile, material thickness, hole pattern, and production capacity.
HFJD roll forming equipment can be configured for different cable support and structural profiles.
Common profiles include:
Suitable for producing:
The machine can be configured according to customer drawings for customized:

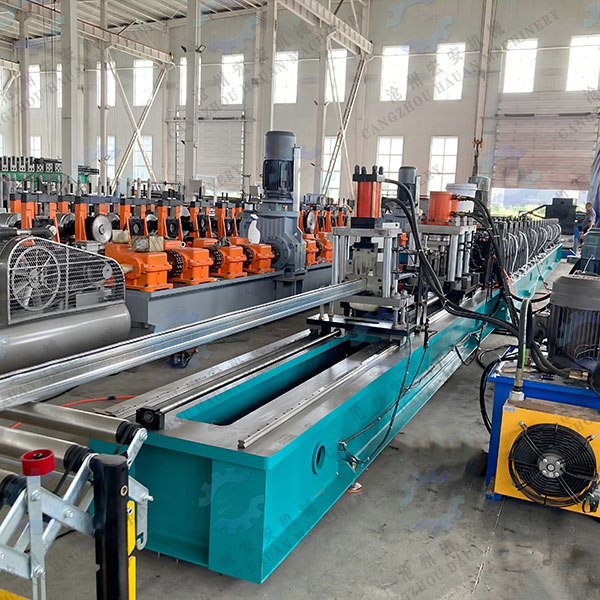

The C channel roll forming production line generally includes:
Steel Coil → Decoiling → Leveling → Punching → Roll Forming → Cutting → Finished C Channel
Galvanized steel coils are loaded onto the decoiler and continuously fed into the production line.
The incoming steel strip is leveled before entering the forming section to improve dimensional consistency.
According to the product design, the machine can produce:
Multiple forming stations gradually shape the flat steel strip into the required C-channel profile.
The finished profile is automatically cut to the required length.
The formed C channels are collected and prepared for inspection and packaging.
C channel roll forming machines can produce structural channels used for:
Suitable profiles can be used for manufacturing:
C channel profiles are widely used for:
The continuous forming process allows long-length C channel profiles to be produced efficiently from steel coils.
Multi-stage forming rollers gradually shape the material, helping maintain consistent profile dimensions.
Roll tooling and punching systems can be configured for different C channel designs.
Continuous coil processing can provide efficient material utilization compared with individual-piece fabrication.
HFJD can configure the machine according to:
HFJD can provide production solutions for different profiles, including:
| Profile | Application |
|---|---|
| 41×41 mm | Strut Channel / Support System |
| 41×21 mm | Strut Channel / Electrical Support |
| P1000 | Heavy-Duty Support Channel |
| P1000T | Slotted Strut Channel |
| Customized C Channel | OEM Production |
The roll forming line can be configured for different steel materials and finishes, including:
Material thickness and coil specifications should be confirmed according to the final profile and machine configuration.
HFJD combines C Channel Steel manufacturing experience with roll forming production technology.
We can provide support for:
Our equipment is designed around actual C channel and Strut Channel production requirements rather than a one-size-fits-all machine configuration.
For customers planning to manufacture their own C channel products, HFJD can develop a customized roll forming solution according to the required profile.
Please provide:
HFJD can then recommend the appropriate roll forming machine configuration.
A Strut Channel Roll Forming Machine is a continuous metal forming machine used to manufacture C-shaped structural channels and strut channels from steel coils.
Yes. The forming rollers and punching system can be designed specifically for 41×41 mm strut channel production.
Yes. A dedicated roll tooling configuration can be designed for 41×21 mm profiles.
Yes. A punching system can be integrated into the production line to produce continuous slots or customized hole patterns.
Yes. Machine configuration, forming rollers, punching dies, cutting system, and control parameters can be customized according to the required product.
Contact HFJD for a customized Strut Channel Roll Forming Machine solution.
Please send us your C channel drawing, material thickness, hole pattern, and required production capacity for machine configuration and quotation.
