نظرة عامة على المنتج

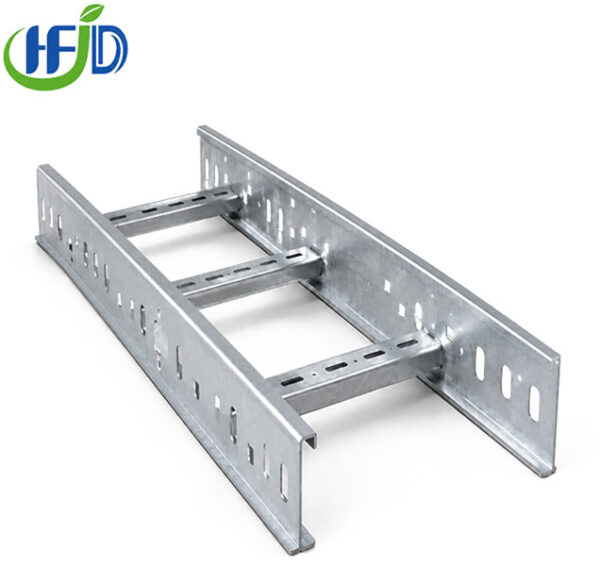

HFJD سلم الكابلات الثقيلة is designed for industrial and infrastructure projects requiring high mechanical strength, large cable carrying capacity and reliable long-term cable support performance.

Compared with standard cable ladder systems, heavy duty cable ladders feature reinforced side rails, stronger structural design and customized material thickness to support heavier cable loads and demanding installation conditions.

The open ladder structure provides excellent cable ventilation, convenient cable installation and easy maintenance access, making it suitable for large power cables, control cables and communication cable systems.

HFJD manufactures heavy duty cable ladder systems according to project requirements, including customized width, side rail height, thickness, rung spacing, material and fittings.

The product belongs to the HFJD

Ladder Cable Tray System

range and can be supplied together with bends, tees, crosses, reducers, covers, couplers and support structures.

المزايا الرئيسية

High Load Carrying Capacity

Heavy duty cable ladders are designed for applications where large quantities of heavy cables need continuous and stable support.

Typical applications include power transmission systems, industrial plants, substations and large infrastructure projects.

Reinforced Side Rail Design

The side rails are the primary load-bearing components of a cable ladder system.

HFJD can customize side rail height, thickness and structural profile according to cable loading requirements and support spacing.

Heavy Duty Cable Support Structure

The combination of reinforced side rails and optimized rung design provides reliable mechanical performance under demanding project conditions.

Excellent Cable Ventilation

The open ladder design allows natural airflow around cables, helping reduce heat accumulation and improving cable operating conditions.

Suitable for Large Power Cables

Heavy duty cable ladders are widely used for power cable routes requiring higher load capacity than conventional cable support systems.

Complete Cable Management Solution

HFJD supplies complete systems including straight sections, bends, tees, crosses, reducers, covers, splice plates and installation supports.

مواصفات المنتج

Heavy Duty Cable Ladder Structure

A heavy duty cable ladder system normally consists of:

• Reinforced longitudinal side rails
• Heavy duty cable support rungs
• Splice connection system
• السحابات وملحقاتها
• Optional protective covers
• Structural support brackets

The structural design can be customized according to:

• Cable weight
• Cable quantity
• دعم التباعد
• بيئة التثبيت
• Project standards

Heavy Duty Cable Ladder vs Standard Cable Ladder

Material and Surface Options

Hot Dip Galvanized Heavy Duty Cable Ladder

Hot dip galvanized steel cable ladders provide enhanced corrosion protection and are widely used in outdoor and industrial environments.

View:

Hot Dip Galvanized Cable Ladder

Stainless Steel Heavy Duty Cable Ladder

Stainless steel options are suitable for marine, chemical and corrosive environments requiring higher corrosion resistance.

View:

Stainless Steel Ladder Cable Tray

Aluminum Heavy Duty Cable Ladder

Aluminum configurations provide reduced system weight while maintaining good corrosion resistance.

View:

Aluminum Ladder Cable Tray

تطبيقات نموذجية

• محطات توليد الطاقة
• Electrical substations
• مرافق النفط والغاز
• Petrochemical plants
• Mining projects
• Steel manufacturing plants
• المصانع الصناعية
• مراكز البيانات
• مشاريع الطاقة المتجددة
• Large infrastructure projects

Power Cable Support Applications

Heavy duty cable ladders are commonly selected for power cable installations where cable weight and quantity are significantly higher than standard electrical installations.

Typical cable types include:

• Medium voltage cables
• High voltage cables
• Power distribution cables
• كابلات التحكم
• Instrumentation cables

Cable Ladder Fittings

HFJD supplies matching heavy duty fittings including:

• الانحناء الأفقي
• عمودي داخل الانحناء
• عمودي خارج الانحناء
• تي
• يعبر
• المخفض
• Splice Plate
• Heavy Duty Coupler
• Cable Ladder Cover
• أقواس الدعم

All fittings can be manufactured according to ladder width, side rail height and project requirements.

Support System

Heavy duty cable ladders require suitable support structures according to cable load and installation conditions.

Trapeze Support

Threaded rods and support channels can be used for suspended cable ladder systems.

Wall Support

Heavy duty cantilever brackets can be used for wall-mounted installations.

Structural Support

Customized support frames can be manufactured for industrial applications.

HFJD also supplies:

Strut Channel / C Channel Steel Support Systems

Load Selection Information

Heavy duty cable ladder selection should consider:

• إجمالي وزن الكابل
• Cable quantity
• Required support span
• Ladder width
• Side rail height
• سمك المادة
• Environmental conditions
• Project standards

HFJD can review project requirements and recommend suitable cable ladder configurations.

القدرة على التخصيص

• Cable ladder width
• Side rail height
• سمك المادة
• Rung spacing
• طول
• Connection design
• المعالجة السطحية
• Special fittings
• Support structures
• OEM production

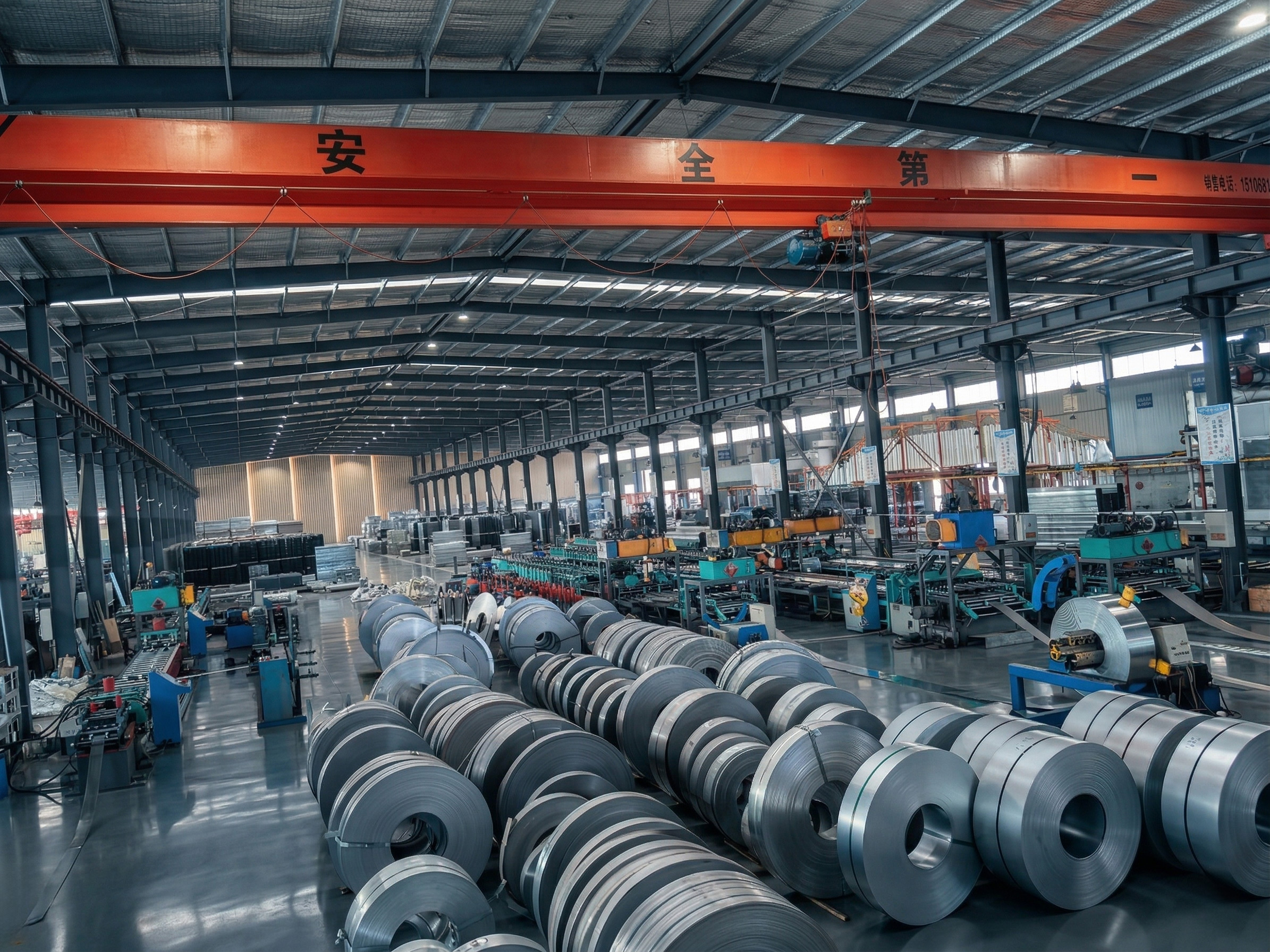

عملية التصنيع

Material Preparation → Cutting → Forming → Rung Processing → Assembly → Connection Processing → Surface Treatment → Inspection → Packing

فحص الجودة

• Material verification
• Thickness inspection
• Width inspection
• Side rail height inspection
• Length inspection
• Rung spacing inspection
• Connection inspection
• Surface inspection
• فحص التغليف

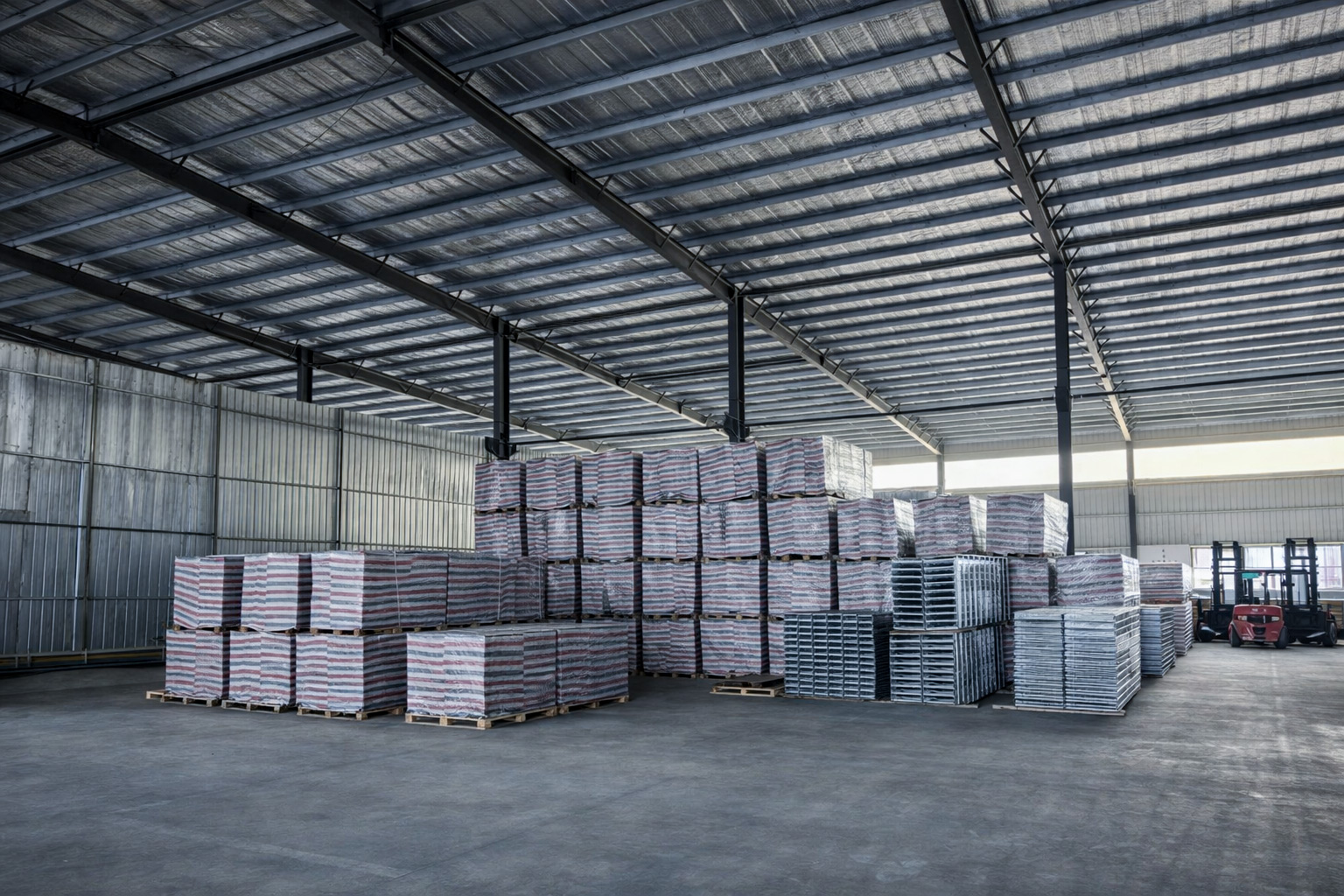

التعبئة والتغليف وتحميل الحاويات

HFJD provides export packaging solutions according to product dimensions and shipment requirements.

• Steel strap bundling
• تغليف وقائي
• Separators between sections
• تعبئة البليت
• تعبئة التصدير المخصصة

الأسئلة الشائعة

What is a heavy duty cable ladder?

A heavy duty cable ladder is a reinforced cable support system designed for higher cable loads and demanding industrial applications.

What applications require heavy duty cable ladders?

They are commonly used in power plants, substations, oil and gas facilities, mining projects and large industrial installations.

Can HFJD customize heavy duty cable ladders?

Yes. Width, height, thickness, rung spacing and fittings can be customized according to project requirements.

Can heavy duty cable ladders be hot dip galvanized?

Yes. Hot dip galvanized finishes are available for outdoor and industrial environments.

What information is needed for quotation?

Please provide width, height, length, cable load, support span, material, finish, quantity and destination port.

المنتجات ذات الصلة

•
  Long Span Cable Ladder

•
  Stainless Steel Ladder Cable Tray

•
  Aluminum Ladder Cable Tray

•
  Hot Dip Galvanized Cable Ladder

•
  صينية كابل السلم


احصل على عرض أسعار

أبحث عن موثوقة Heavy Duty Cable Ladder Manufacturer?

Send HFJD:

Width × Height × Length + Material + Thickness + Cable Load + Support Span + Quantity + Destination Port

HFJD provides customized heavy duty cable ladder solutions for industrial and infrastructure projects worldwide.
