نظرة عامة على المنتج

HFJD 600 × 100 مم صينية كابل مثقوبة شديدة التحمل is designed for large-capacity cable routing and support in power plants, industrial facilities, infrastructure projects and other demanding electrical installations.

مع أ 600 mm width and 100 mm side height, this configuration provides increased cable carrying space for power cables, control cables, instrumentation cables and communication systems.

كجزء من HFJD

أنظمة علبة الكابلات المثقبة

this heavy-duty cable tray can be manufactured in different steel thicknesses, lengths, surface treatments and perforation patterns according to project requirements.

HFJD can also supply matching covers, bends, tees, crosses, reducers, couplers, support brackets and strut channel systems for complete cable management projects.

المزايا الرئيسية

600 mm Large Cable Capacity

The 600 mm tray width provides a large routing area for installations containing multiple power, control and instrumentation cable circuits.

100 mm High Side Rail

The 100 mm side height provides effective cable containment and makes the tray suitable for larger cable bundles and industrial installations.

Heavy Duty Steel Construction

Multiple steel thicknesses are available according to cable load, tray span, support spacing and project specifications.

Ventilated Perforated Bottom

The perforated bottom improves airflow around installed cables and provides convenient fixing points for cable ties and cable clamps.

Multiple Surface Treatments

Pre-galvanized, hot dip galvanized, powder-coated and stainless steel configurations can be supplied according to the installation environment.

Complete Cable Tray System

Matching fittings, covers, support systems, C channels and installation accessories can be supplied together with the tray.

مواصفات المنتج

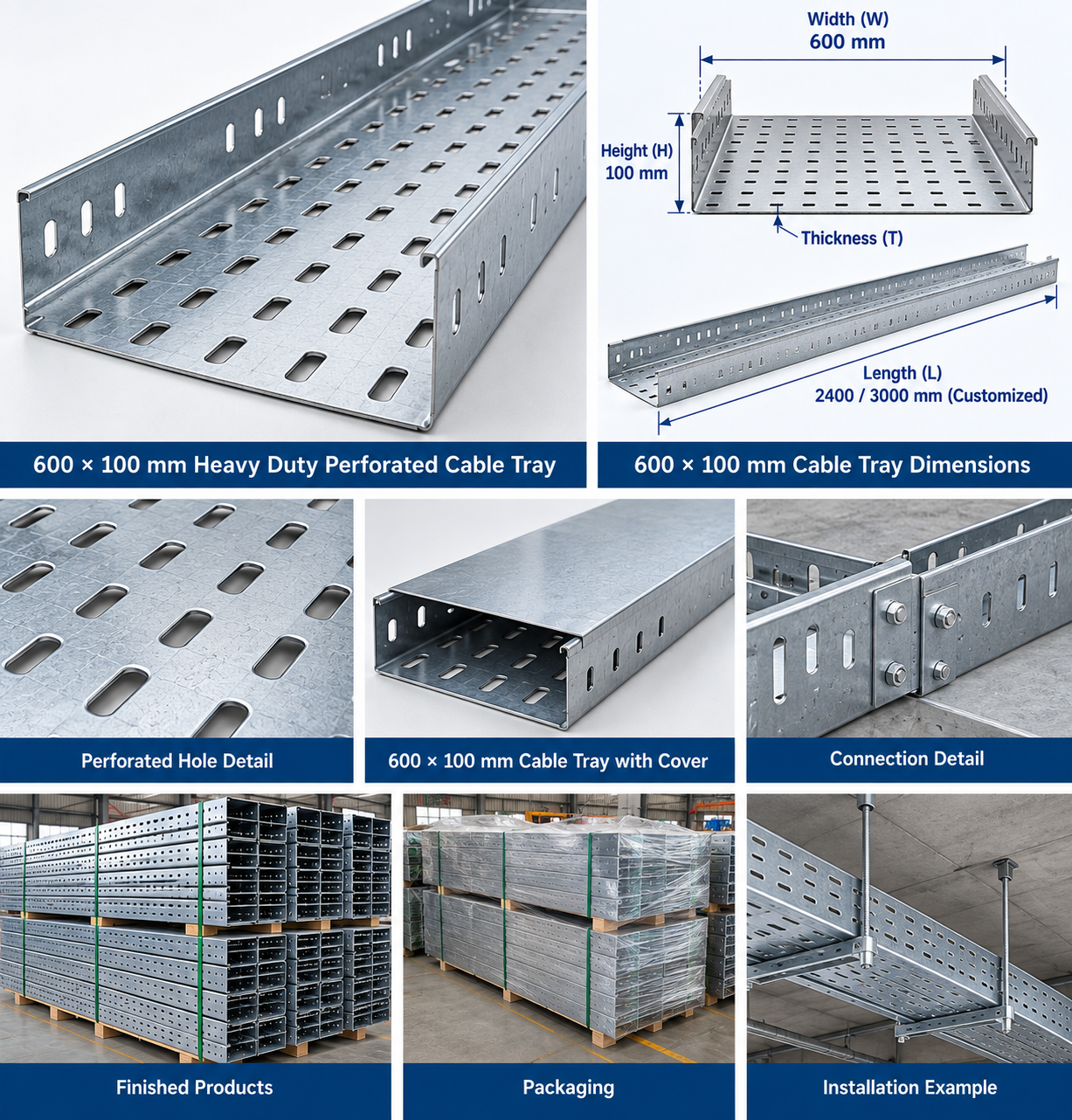

600 × 100 mm Cable Tray Dimensions

For projects requiring a smaller large-capacity configuration, view our

400 × 100 × 2440 مم صينية كابل مثقبة

Heavy Duty Design for Large Cable Loads

A 600 mm wide tray can carry a considerably larger quantity of cable than smaller tray sizes. For this reason, material thickness, support spacing and installation method should be selected according to actual project loads.

HFJD can manufacture thicker tray bodies and reinforced side profiles according to engineering requirements.

Customers requiring additional heavy-duty configurations can also view our

علبة الكابلات المثقبة شديدة التحمل

خيارات تشطيب المواد والسطح

الصلب المجلفن مسبقًا

Suitable for indoor electrical rooms, factories and general industrial applications where cost efficiency and corrosion protection are both required. See our

صينية الكابلات المثقبة المجلفنة مسبقًا

الفولاذ المجلفن بالغمس الساخن

Suitable for outdoor, power and demanding industrial installations where enhanced corrosion protection is required. See our

صينية الكابلات المثقبة المجلفنة بالغمس الساخن

الفولاذ المقاوم للصدأ

Stainless steel can be supplied for humid, corrosive and specialized industrial environments.

مسحوق الصلب المطلي

Powder coating can be supplied when additional surface protection or project-specific color identification is required.

How to Select the Right Thickness

The appropriate thickness for a 600 × 100 mm cable tray depends on the actual cable load and support arrangement.

• إجمالي وزن الكابل
• دعم التباعد
• Tray span
• بيئة التثبيت
• القوة الميكانيكية المطلوبة
• Cover requirement
• مواصفات المشروع أو الاستشاري

Send HFJD the project drawing, cable load and support spacing for technical review before final production.

تطبيقات نموذجية

• محطات توليد الطاقة
• Electrical substations
• المصانع الصناعية
• Manufacturing facilities
• Mining projects
• Water treatment plants
• Utility tunnels
• مشاريع البنية التحتية
• Solar power plants
• Large commercial projects
• Control and instrumentation systems

مطابقة التجهيزات والملحقات

HFJD can provide matching components for complete 600 × 100 mm cable tray systems:

• غطاء علبة الكابل
• الانحناء الأفقي
• عمودي داخل الانحناء
• عمودي خارج الانحناء
• تي
• يعبر
• المخفض
• لوحة لصق / مقرنة
• قوس الدعم
• مشبك علبة الكابل
• البراغي والمثبتات

Heavy Duty Support Systems

Large-width cable trays require properly designed support structures to maintain stability and load performance.

Installation options can include trapeze supports, wall brackets, heavy-duty cantilever arms and customized steel support frames.

HFJD also manufactures

أنظمة دعم قناة Strut/C

together with threaded rods, channel nuts, brackets and base components.

القدرة على التخصيص

• Tray thickness
• طول الدرج
• Bottom perforation
• Hole size and spacing
• فتحات الاتصال الجانبية
• Side profile
• Return flange
• Reinforced design
• المعالجة السطحية
• سمك الغطاء
• Fittings
• Support structures
• التعبئة والتغليف

Customers can provide CAD drawings, PDF drawings, technical specifications or samples for technical confirmation.

عملية التصنيع

Material Preparation → Cutting → Punching → Forming → Connection Processing → Inspection → Surface Treatment → Final Inspection → Packing

فحص الجودة

• 600 mm width inspection
• 100 mm side height inspection
• فحص سمك المادة
• فحص الطول الإجمالي
• Hole size and spacing inspection
• Forming quality inspection
• فحص حالة السطح
• فحص توافق الاتصال
• فحص التغليف

التعبئة والتغليف وتحميل الحاويات

Due to the large width of the tray, packing and container loading can be optimized according to tray length, thickness, nesting method and total quantity.

• تجميع الشريط الصلب
• Nested packing where applicable
• تغليف وقائي
• تعبئة البليت
• Customized export packaging

HFJD can calculate loading plans for 20GP, 40GP and 40HQ containers according to the final specification.

الأسئلة الشائعة

What does 600 × 100 mm mean?

It refers to a nominal tray width of 600 mm and a side height of 100 mm.

Is 600 × 100 mm suitable for large cable quantities?

Yes. The large tray width and 100 mm side height provide increased cable routing capacity for industrial and power applications.

ما سمك يجب أن أختار؟

Thickness depends on cable load, support spacing, installation span and project specifications. HFJD can review these parameters before production.

Is a 3-meter length available?

Yes. 3-meter lengths can be manufactured together with 2.4-meter and customized lengths.

Can you supply a matching cover?

Yes. Matching covers are available, and cover thickness can be customized separately from the tray body.

Can HFJD supply hot dip galvanized 600 × 100 mm trays?

Yes. Hot dip galvanizing is available for outdoor and industrial installations requiring enhanced corrosion protection.

Are matching fittings available?

Yes. Matching bends, tees, crosses, reducers, covers and couplers can be manufactured for the complete cable tray system.
