نظرة عامة على المنتج

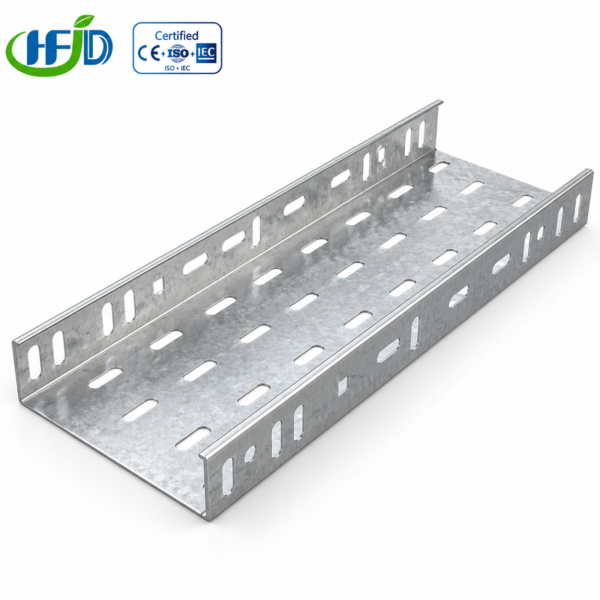

HFJD 300 × 50 مم صينية كابل مثقبة is designed for organized routing and support of power cables, control cables, communication cables and instrumentation wiring in industrial, commercial and infrastructure projects.

مع أ 300 mm width and 50 mm side height, this cable tray provides increased cable carrying space while maintaining a relatively compact vertical profile.

كجزء من HFJD

أنظمة علبة الكابلات المثقبة

the 300 × 50 mm tray can be manufactured in different thicknesses, lengths, materials and surface treatments according to project requirements.

HFJD can also provide matching covers, bends, tees, reducers, couplers, support brackets and strut channel systems for complete project supply.

المزايا الرئيسية

300 mm Wide Cable Routing Area

The 300 mm tray width provides increased cable routing capacity for medium and larger electrical installations.

50 mm Compact Side Height

The 50 mm side rail helps contain cables while maintaining a low-profile structure for installations with limited vertical clearance.

Perforated Bottom for Ventilation

The perforated base provides airflow around cables and convenient fixing positions for cable ties, clips and clamps.

Multiple Thickness Options

Material thickness can be selected according to cable load, installation span, support spacing and engineering requirements.

Multiple Surface Treatments

Pre-galvanized, hot dip galvanized, powder-coated and stainless steel options are available according to the project environment.

Complete Cable Tray System

Covers, fittings, support brackets, C channels and installation accessories can be supplied together with the tray.

مواصفات المنتج

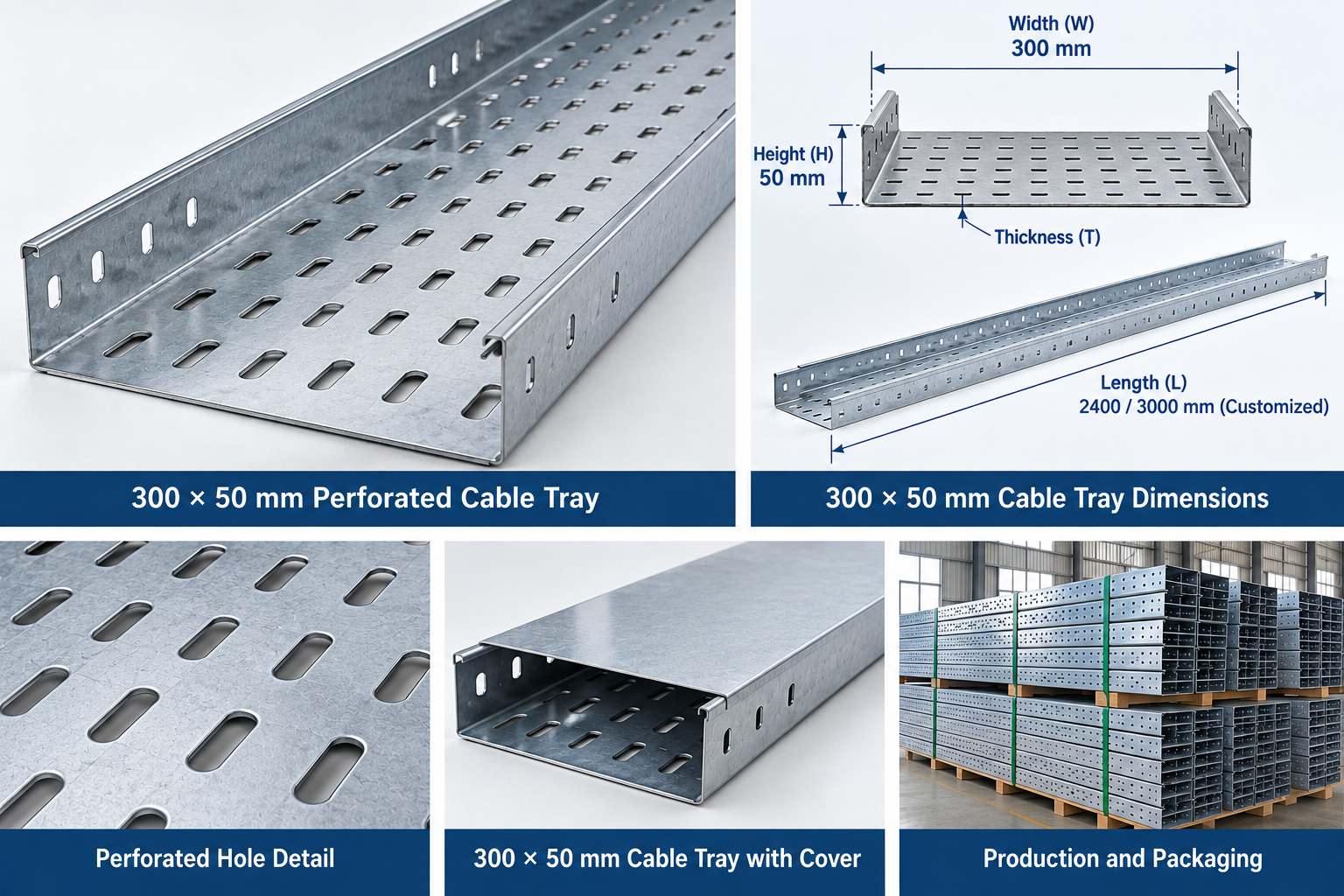

300 × 50 mm Cable Tray Dimensions

For projects requiring greater cable capacity and higher side rails, customers can also view our

400 × 100 × 2440 مم صينية كابل مثقبة

خيارات تشطيب المواد والسطح

الصلب المجلفن مسبقًا

Suitable for indoor and general industrial applications where a practical and cost-effective galvanized finish is required. Learn more about our

صينية الكابلات المثقبة المجلفنة مسبقًا

الفولاذ المجلفن بالغمس الساخن

Suitable for outdoor, industrial and infrastructure projects requiring enhanced corrosion protection.

الفولاذ المقاوم للصدأ

Stainless steel options can be supplied for humid, corrosive or specialized industrial environments.

مسحوق الصلب المطلي

Powder coating can be supplied for projects requiring specific appearance, color identification or additional surface protection.

Selecting the Right Thickness

The required thickness for a 300 × 50 mm cable tray should be selected according to the actual project load and installation arrangement.

• Cable weight
• دعم التباعد
• Installation span
• بيئة داخلية أو خارجية
• Mechanical strength requirement
• Consultant or project specification

For higher-load industrial applications, see our

علبة الكابلات المثقبة شديدة التحمل

تطبيقات نموذجية

• المصانع الصناعية
• مصانع التصنيع
• المباني التجارية
• المستودعات
• غرف كهربائية
• أنظمة توزيع الطاقة
• Control and instrumentation systems
• أنظمة البيانات والاتصالات
• MEP installations
• مشاريع البنية التحتية
• Solar power projects

مطابقة التجهيزات والملحقات

HFJD can provide matching components for complete 300 × 50 mm cable tray installations:

• غطاء علبة الكابل
• الانحناء الأفقي
• عمودي داخل الانحناء
• عمودي خارج الانحناء
• تي
• يعبر
• المخفض
• لوحة لصق / مقرنة
• أقواس الدعم
• Cable Tray Clamps
• البراغي والمثبتات

أنظمة دعم علبة الكابلات

The 300 × 50 mm perforated cable tray can be installed using wall-mounted brackets, cantilever arms, ceiling suspension systems, trapeze supports or customized steel frames.

HFJD also supplies

أنظمة دعم قناة Strut/C

for cable tray mounting together with threaded rods, channel nuts and support accessories.

القدرة على التخصيص

HFJD can customize the technical details of the 300 × 50 mm cable tray according to project drawings and specifications.

• سمك المادة
• طول الدرج
• حجم الثقب
• Hole shape
• تباعد الثقب
• فتحات الاتصال الجانبية
• عودة ملف تعريف شفة
• المعالجة السطحية
• سمك الغطاء
• Fittings
• Support components
• التعبئة والتغليف
• العلامة التجارية للعملاء

Customers can provide CAD drawings, PDF drawings, samples or project specifications for technical review.

عملية التصنيع

Material Preparation → Cutting → Punching → Forming → Connection Hole Processing → Inspection → Surface Treatment → Final Inspection → Packing

فحص الجودة

• 300 mm width inspection
• فحص ارتفاع الجانب 50 ملم
• فحص سمك المادة
• Length inspection
• Hole dimension inspection
• Hole spacing inspection
• فحص الملف الجانبي
• فحص حالة السطح
• فحص توافق الاتصال
• Packaging inspection

التعبئة والتغليف وتحميل الحاويات

Packing can be arranged according to cable tray length, thickness, surface treatment, quantity and shipping requirements.

• تجميع الشريط الصلب
• تغليف وقائي
• تعبئة البليت
• Customized export packaging

HFJD can optimize loading arrangements for 20GP, 40GP and 40HQ containers.

الأسئلة الشائعة

What does 300 × 50 mm mean?

It refers to a nominal cable tray width of 300 mm and a side height of 50 mm.

What applications are suitable for a 300 × 50 mm cable tray?

It is suitable for medium and larger cable quantities in industrial facilities, commercial buildings, electrical rooms and infrastructure projects.

What thicknesses can HFJD provide?

Common options include 0.8, 1.0, 1.2, 1.5 and 2.0 mm, with customized thicknesses available according to project requirements.

Can the tray be supplied in 3-meter lengths?

Yes. 3-meter lengths can be manufactured together with 2.4-meter and customized lengths.

Is a matching cover available?

Yes. Matching covers are available, and the cover thickness can be specified separately from the cable tray body.

Can HFJD customize the perforation pattern?

Yes. Hole shape, dimensions, spacing and layout can be manufactured according to approved drawings.

Can fittings be supplied in the same size?

Yes. Matching bends, tees, crosses, reducers, couplers and covers can be manufactured for the 300 × 50 mm cable tray system.
